Do I need an internet connection to send an Email Alert Message?
Yes, most email servers require internet connections to send emails.
What does SMTP Server, Port, and TLS mean?
SMTP stands for Simple Mail Transfer Protocol, which is the communication protocol for electronic mail transmissions. Most common email providers have their own SMTP Server email address.
Most email providers will also allow this communication across a specific port on the network, which is the SMTP Server Port.
TLS stands for Transport Layer Security when sending emails from email providers accounts. Having such a layer will often require a specific security password to be generated and used with third party applications such as the Guardian Series. Most TLS ports are 587.
How do I set up my G300 to send emails from my GMAIL account?

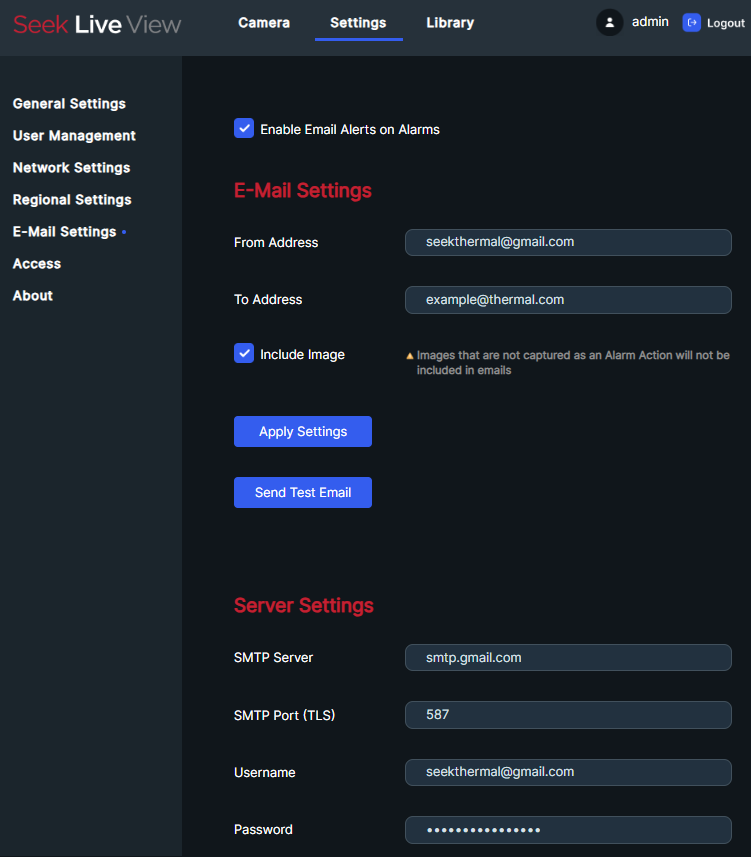

1. Fill in the appropriate email server settings for your Gmail account; default settings are as follows:
SMTP Server Address = “smtp.gmail.com”
SMTP Server Port = “587”
2. Please enter the User Name (often email address). You will need to generate a security password, to learn how please follow the steps indicated below.
3. List the email address for the email account that will be sending the email message alerts out. List the email addresses for the Email Alert to be sent to, please separate email addresses with a comma.
4. Select the Include Images checkbox to include a daylight image .jpg file of the Alert Scan.
How do I generate a Security Password for my Gmail email account?
If you are using a Gmail account, you will need to generate a password for security 2-Factor Authentication. To do this please perform the following steps:
-

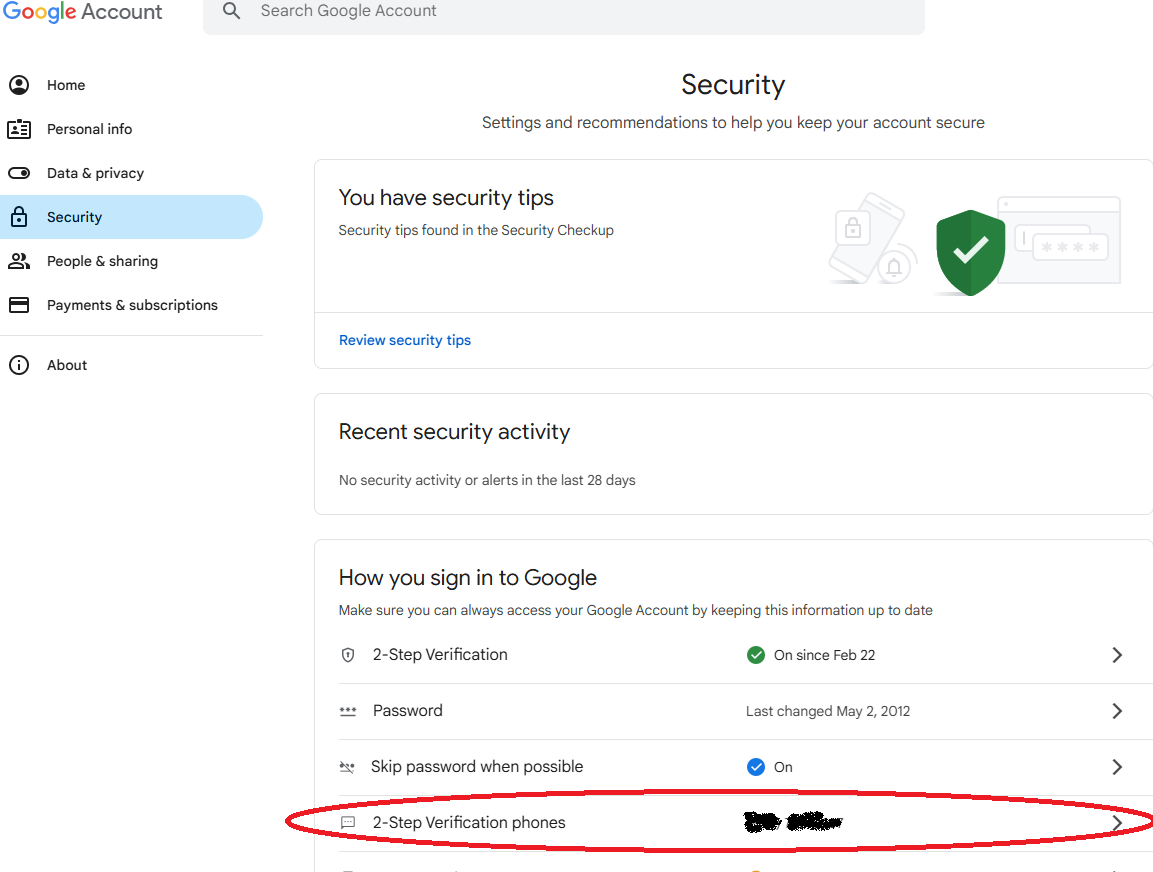

Open a web browser and log into your Gmail email account. Select your account button in the upper right-hand corner of the browser, then select the Manage your Google Account window.
-
If you have not done so already go through the steps to enable 2-Step Authentication.
-

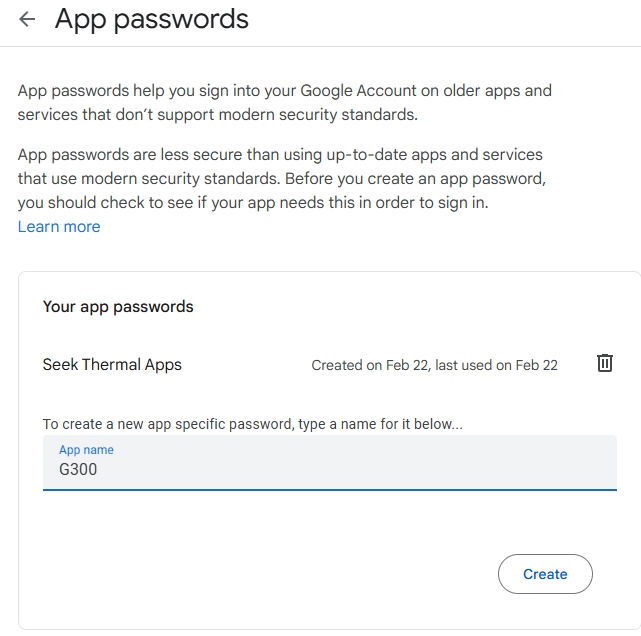

Visit https://myaccount.google.com/apppasswords to generate an app password.
-

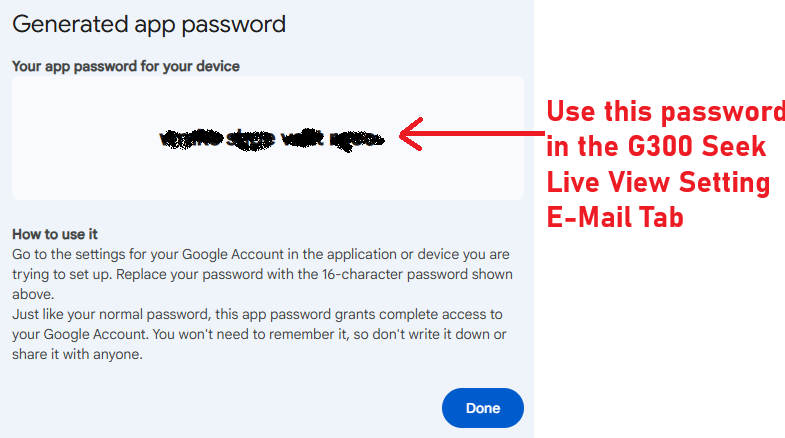

Use this generated password for the password utilized in your G300 SMTP Sever account on the Email Settings page. You will use this new password instead of the password normally associated with your email account.
How do I set up G300 to send emails from my YAHOO account?
1. Fill in the appropriate email server settings for your Microsoft Outlook; the default settings are as follows:
SMTP Server Address = “smtp.mail.yahoo.com”
SMTP Server Port = “587”
2. Please enter the User Name (often email address). You will need to generate a security password, to learn how please follow the steps indicated below.
3. List the email address for the email account that will be sending the email message alerts out. List the email addresses for the Email Alert to be sent to, please separate email addresses with a comma.
4. Select the Include Images checkbox to include a daylight image .jpg file of the Alert Scan.
How do I generate a Security Password for my Yahoo email account?
If you are using a Yahoo Mail email account, you will need to generate a password for security authentication. To do this please perform the following steps:
-
Open a web browser and log into your Yahoo Mail email account. Select your account button in the upper right-hand corner of the browser, then select the Account Info link.
-

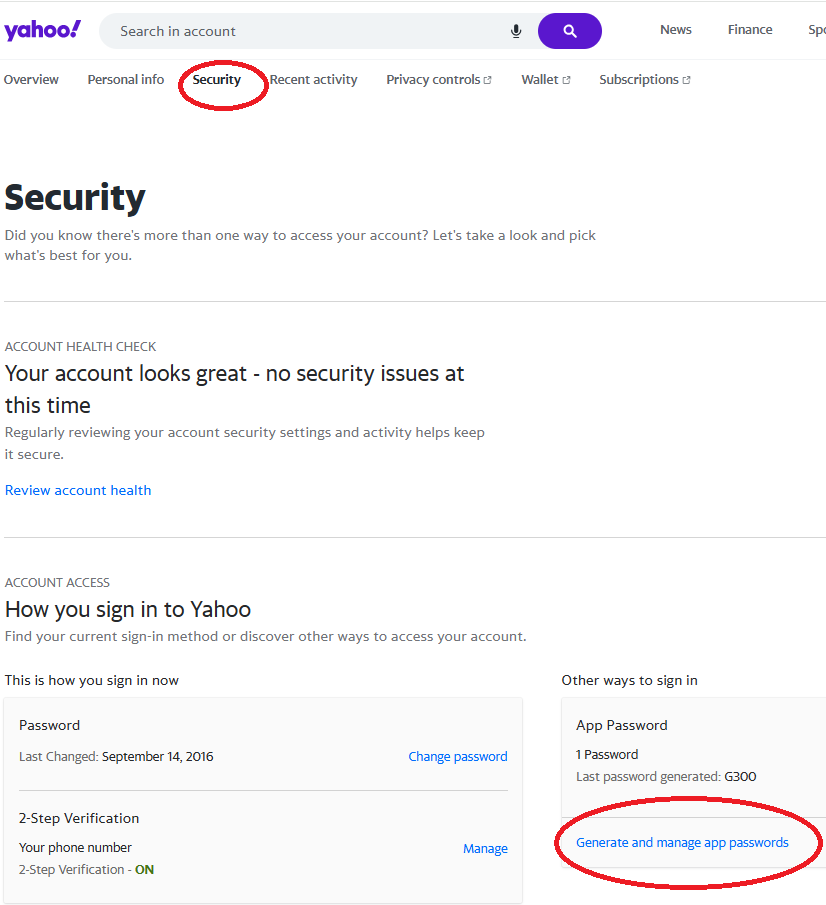

Select the Security tab on the top of browswer, scroll to ACCOUNT ACCESS section and click on the Generate and manage app passwords word link.
-

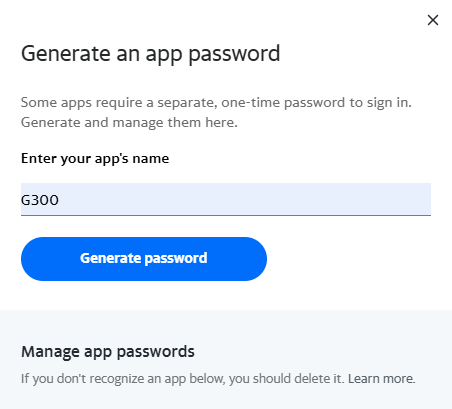

Type in the name for your app’s password and hit the Generate password button.
-
Type in the name of your choice and select the GENERATE button to generate a password.
-

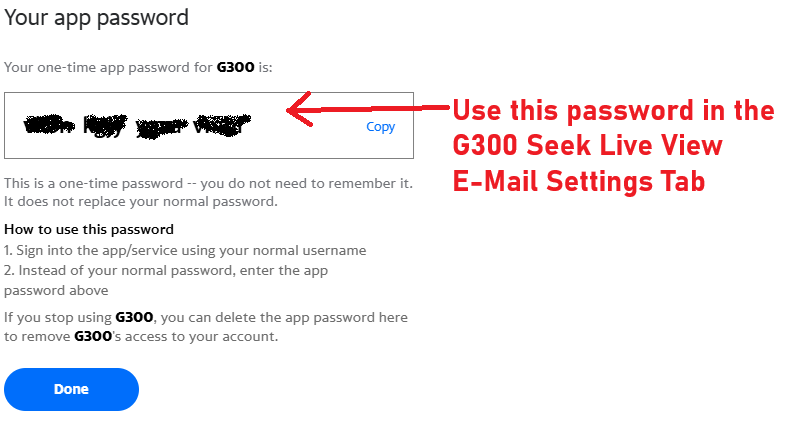

Use this generated password for the password utilized in your G300 SMTP Sever account in the Email Settings window. You will use this new password instead of password normally associated with your email account.
How do I set up G300 to send emails from my OUTLOOK account?
Unfortunately, Microsoft has chosen to not support SMTP servers starting in 2025. It is currently not possible to send email alerts through a Microsoft account due to this new server policy. To read more about why Microsoft has chosen to not support SMTP servers you can look on the internet. However, here is a link to get you started: https://learn.microsoft.com/en-us/windows-server/get-started/removed-deprecated-features-windows-server-2025
